We simulate a data set with a heavily censored upper component.

set.seed(501)
n = 300
ncomp = 2
pi = function(t) {
  z <- 0.07 + 0.04 * t - 0.00045 * t^2
  tibble("1" = 1 - z, "2" = z)
}
`E[X|T,C]` = function(t, c)
{
  case_when(
    c == "1" ~ -4.0 + (0.24 * t) - (0.0055 * t^2),
    c == "2" ~ 3 + 0.001 * t,
    TRUE ~ NaN
  )
}
t_dist = function(n){runif(n, min = 0, max = 16)}
attr(t_dist, "min") = 0
attr(t_dist, "max") = 16
sd_vector = c("1" = 1, "2" = 1.05)
low_con = -3
high_con = 1
scale = "log"
example_data_reduced = simulate_mics(n = n, t_dist = t_dist, pi = pi, `E[X|T,C]` = `E[X|T,C]`, sd_vector = sd_vector, covariate_list = NULL, covariate_effect_vector = c(0), low_con = low_con, high_con = high_con, scale = "log") %>% suppressMessages()

The upper component barely includes any observations within the range of tested concentrations. It will be difficult to estimate mu for the upper component when we have very little information about the center of the distribution or its width.

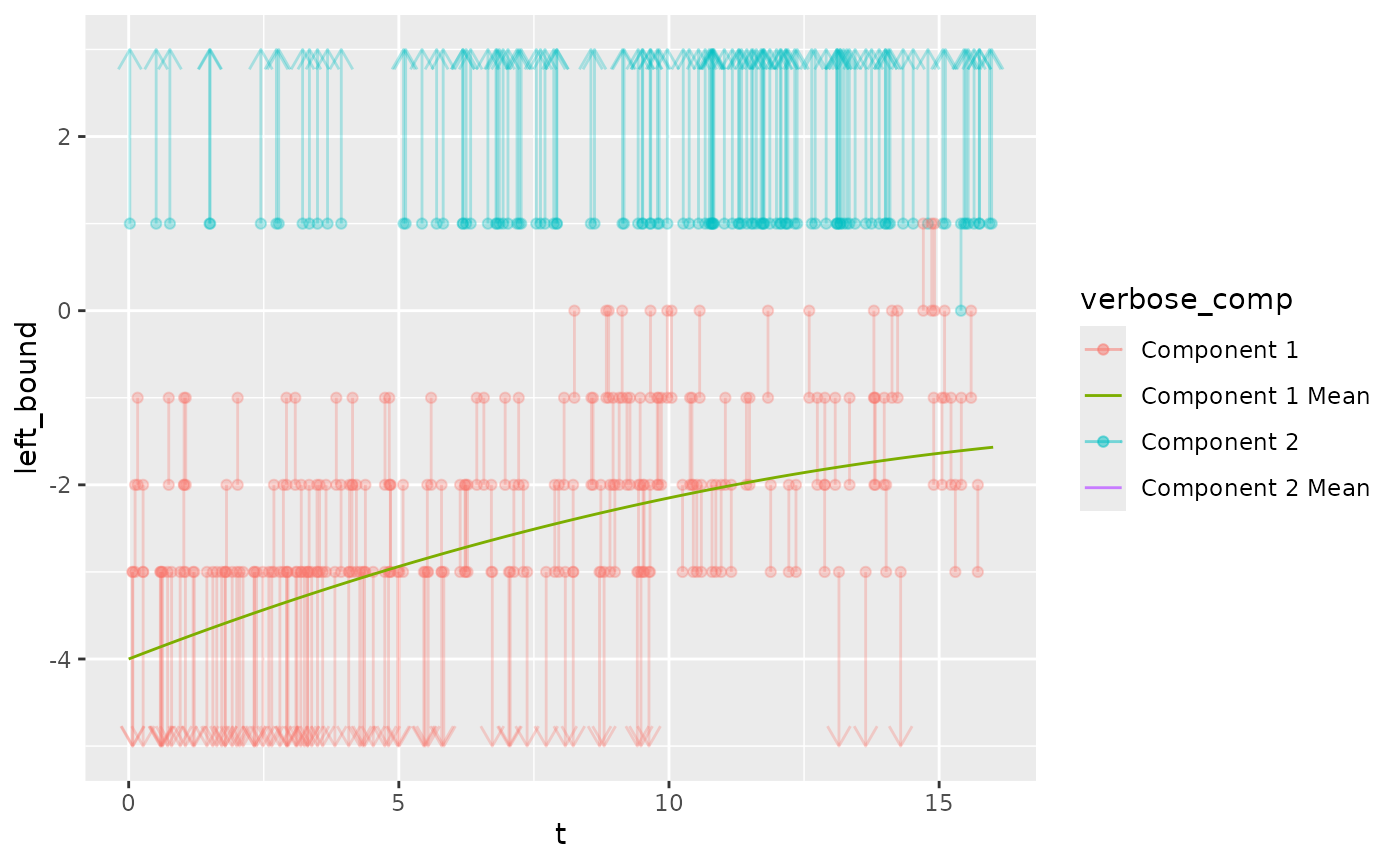

example_data_reduced %>%
  mutate(verbose_comp = case_when(
    comp == 1 ~ "Component 1",
    TRUE ~ "Component 2"
  )) %>%
  ggplot() +
  geom_segment(aes(x = t, xend = t, y = left_bound, yend = right_bound, color = verbose_comp), data = (. %>% filter(left_bound != -Inf & right_bound != Inf)), alpha = 0.3) +
  geom_segment(aes(x = t, xend = t, y = right_bound, yend = left_bound, color = verbose_comp), data = (. %>% filter(left_bound == -Inf) %>% mutate(left_bound = low_con - 2)), arrow = arrow(length = unit(0.03, "npc")), alpha = 0.3) +
  geom_segment(aes(x = t, xend = t, y = left_bound, yend = right_bound, color = verbose_comp), data = (. %>% filter(right_bound == Inf) %>% mutate(right_bound = high_con + 2)), arrow = arrow(length = unit(0.03, "npc")), alpha = 0.3) +
  geom_point(aes(x = t, y = left_bound, color = verbose_comp), data = . %>% filter(left_bound != -Inf), alpha = 0.3) +
  geom_point(aes(x = t, y = right_bound, color = verbose_comp), data = . %>% filter(right_bound != Inf), alpha = 0.3) +
  geom_function(fun = function(t){`E[X|T,C]`(t, c = "1")}, aes(color = "Component 1 Mean")) +
  geom_function(fun = function(t){`E[X|T,C]`(t, c = "2")}, aes(color = "Component 2 Mean")) +
  xlim(attr(t_dist, "min") ,attr(t_dist, "max")) +
  ylim(low_con - 2, high_con + 2) %>% suppressWarnings()
#> Warning in geom_function(fun = function(t) {: All aesthetics have length 1, but the data has 300 rows.
#> ℹ Please consider using `annotate()` or provide this layer with data containing
#>   a single row.
#> Warning in geom_function(fun = function(t) {: All aesthetics have length 1, but the data has 300 rows.
#> ℹ Please consider using `annotate()` or provide this layer with data containing
#>   a single row.
#> Warning: Calling `case_when()` with size 1 LHS inputs and size >1 RHS inputs was
#> deprecated in dplyr 1.2.0.
#> ℹ This `case_when()` statement can result in subtle silent bugs and is very inefficient.
#>
#>   Please use a series of if statements instead:
#>
#>   ```
#>   # Previously
#>   case_when(scalar_lhs1 ~ rhs1, scalar_lhs2 ~ rhs2, .default = default)
#>
#>   # Now
#>   if (scalar_lhs1) {
#>     rhs1
#>   } else if (scalar_lhs2) {
#>     rhs2
#>   } else {
#>     default
#>   }
#>   ```
#> This warning is displayed once per session.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.
#> Warning: Removed 100 rows containing missing values or values outside the scale range
#> (`geom_function()`).
#> `geom_function()`: Each group consists of only one observation.
#> ℹ Do you need to adjust the group aesthetic?

We attempt to fit the full model to the heavily censored data set and by looking at the cross validation results we find that none of the tested degree sets are able to converge with any consistency, suggesting this modeling approach is not appropriate for this data set.

out_full = fit_EM(
  max_degree = 3, visible_data = example_data_reduced, verbose = 1, max_it = 30, nfolds = 5
)
#> CV for degrees22; attempt1
#> fold 1
#> likelihood not found, moving to next repeat if available
#> CV for degrees22; attempt2
#> fold 1
#> likelihood not found, moving to next repeat if available
#> CV for degrees22; attempt3
#> fold 1
#> likelihood not found, moving to next repeat if available
#> CV for degrees22; attempt4
#> fold 1
#> likelihood not found, moving to next repeat if available
#> CV for degrees33; attempt1
#> fold 1
#> likelihood not found, moving to next repeat if available
#> CV for degrees33; attempt2
#> fold 1
#> likelihood not found, moving to next repeat if available
#> CV for degrees33; attempt3
#> fold 1
#> Warning in log(y[b2] - y[b1]): NaNs produced
#> likelihood not found, moving to next repeat if available
#> CV for degrees33; attempt4
#> fold 1
#> likelihood not found, moving to next repeat if available
out_full$cv_results
#> # A tibble: 2 × 4
#>   degree_1 degree_2 log_likelihood total_repeats
#>      <int>    <int>          <dbl>         <dbl>
#> 1        2        2            NaN            15
#> 2        3        3            NaN            15

To resolve this issue, we use the reduced model, which allows us to specify a component to treat as “fixed”, which in this context means we assume it lies entirely above the tested concentration range, so that any observations within the tested range cannot belong to this component. By making this assumption, we are able to fit the remaining component and estimate the weights of the components over time.

Note that observations above or below the tested concentrations can still be weighted as part of the remaining component that we are estimating the mean and width of.

out_reduced = fit_EM(
  approach = "reduced", fixed_side = "RC", extra_row = FALSE, max_degree = 4, visible_data = example_data_reduced, verbose = 0, ecoff = 2
)
#> CV for degrees2; attempt1
#> CV for degrees3; attempt1
#> CV for degrees4; attempt1
out_reduced$cv_results
#> # A tibble: 3 × 3
#>   degree_1 log_likelihood total_repeats
#>      <int>          <dbl>         <dbl>
#> 1        3          -393.             0
#> 2        2          -400.             0
#> 3        4          -414.             0

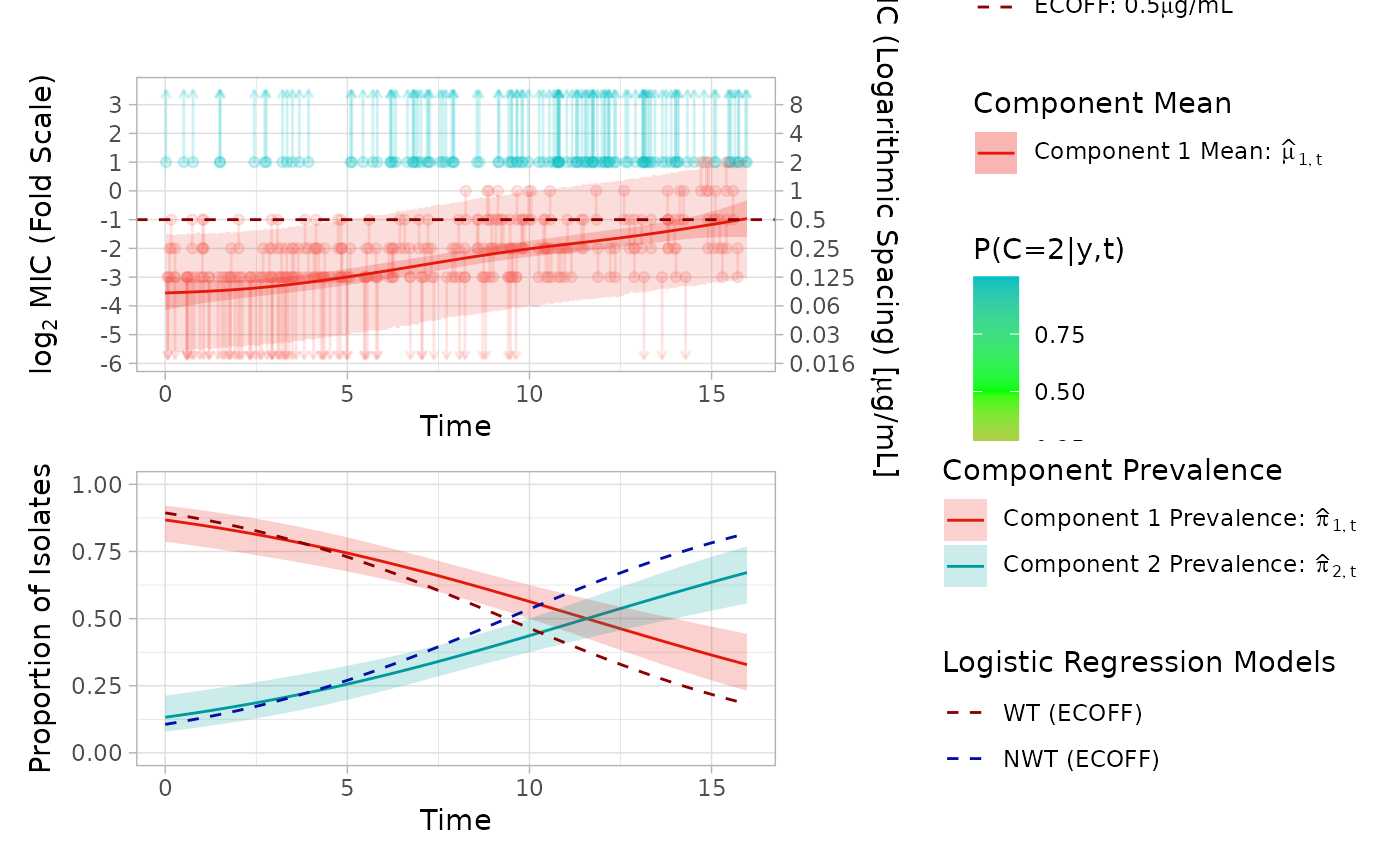

plot_fm(out_reduced, ecoff = 0.5, add_log_reg = TRUE)
#> Scale for y is already present.
#> Adding another scale for y, which will replace the existing scale.
#> Scale for y is already present.
#> Adding another scale for y, which will replace the existing scale.

Next we simulate a data set similar to the last, except the upper component has slightly more overlap with the range of tested concentrations.

set.seed(502)
n = 300
ncomp = 2
pi = function(t) {
  z <- 0.07 + 0.04 * t - 0.00045 * t^2
  tibble("1" = 1 - z, "2" = z)
}
`E[X|T,C]` = function(t, c)
{
  case_when(
    c == "1" ~ -4.0 + (0.2 * t) - (0.0055 * t^2),
    c == "2" ~ 2 + 0.001 * t,
    TRUE ~ NaN
  )
}
t_dist = function(n){runif(n, min = 0, max = 16)}
attr(t_dist, "min") = 0
attr(t_dist, "max") = 16
sd_vector = c("1" = 1, "2" = 1.05)
low_con = -3
high_con = 1
scale = "log"
example_data_reduced_2 = simulate_mics(n = n, t_dist = t_dist, pi = pi, `E[X|T,C]` = `E[X|T,C]`, sd_vector = sd_vector, covariate_list = NULL, covariate_effect_vector = c(0), low_con = low_con, high_con = high_con, scale = "log") %>% suppressMessages()

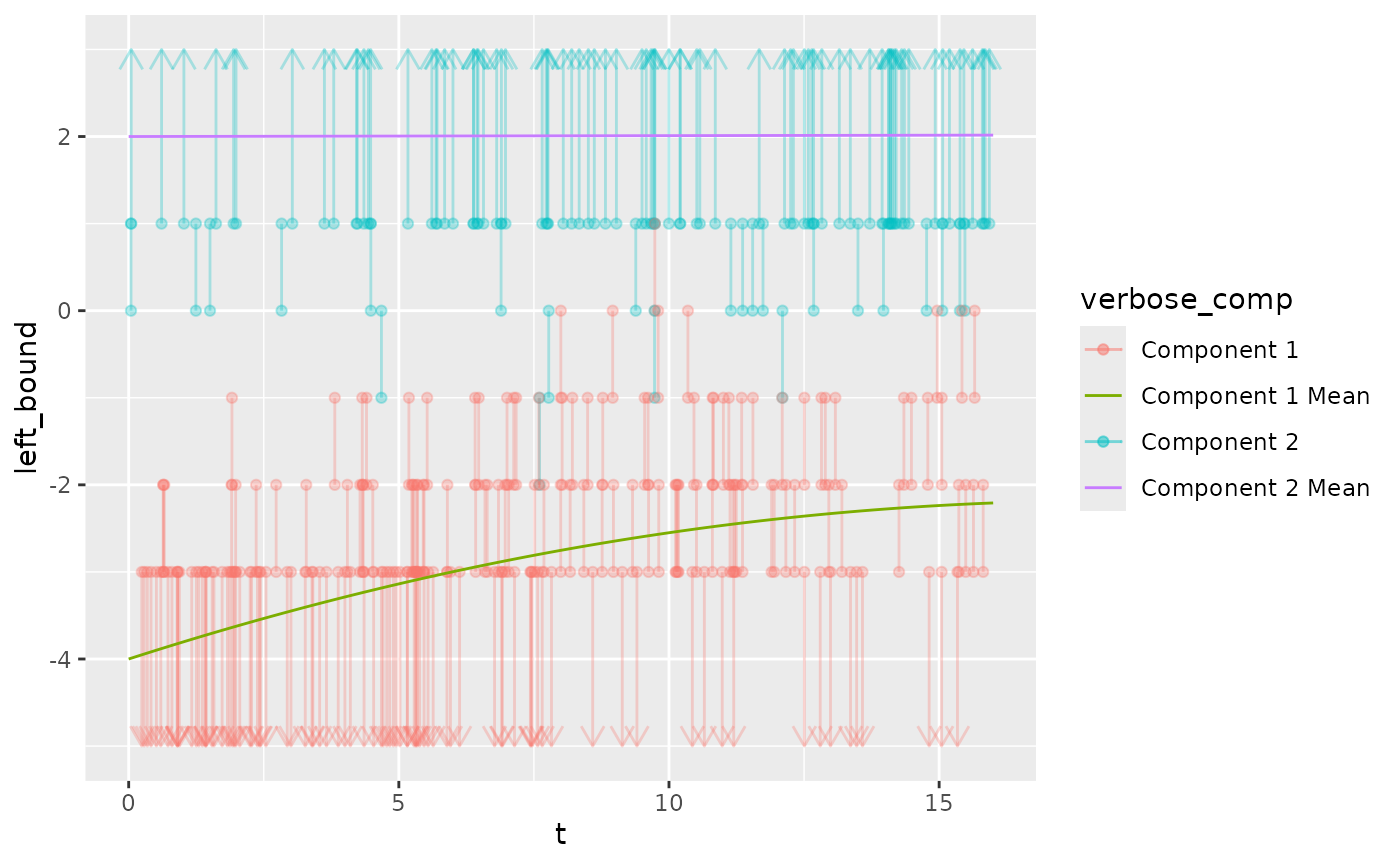

example_data_reduced_2 %>%
  mutate(verbose_comp = case_when(
    comp == 1 ~ "Component 1",
    TRUE ~ "Component 2"
  )) %>%
  ggplot() +
  geom_segment(aes(x = t, xend = t, y = left_bound, yend = right_bound, color = verbose_comp), data = (. %>% filter(left_bound != -Inf & right_bound != Inf)), alpha = 0.3) +
  geom_segment(aes(x = t, xend = t, y = right_bound, yend = left_bound, color = verbose_comp), data = (. %>% filter(left_bound == -Inf) %>% mutate(left_bound = low_con - 2)), arrow = arrow(length = unit(0.03, "npc")), alpha = 0.3) +
  geom_segment(aes(x = t, xend = t, y = left_bound, yend = right_bound, color = verbose_comp), data = (. %>% filter(right_bound == Inf) %>% mutate(right_bound = high_con + 2)), arrow = arrow(length = unit(0.03, "npc")), alpha = 0.3) +
  geom_point(aes(x = t, y = left_bound, color = verbose_comp), data = . %>% filter(left_bound != -Inf), alpha = 0.3) +
  geom_point(aes(x = t, y = right_bound, color = verbose_comp), data = . %>% filter(right_bound != Inf), alpha = 0.3) +
  geom_function(fun = function(t){`E[X|T,C]`(t, c = "1")}, aes(color = "Component 1 Mean")) +
  geom_function(fun = function(t){`E[X|T,C]`(t, c = "2")}, aes(color = "Component 2 Mean")) +
  xlim(attr(t_dist, "min") ,attr(t_dist, "max")) +
  ylim(low_con - 2, high_con + 2) %>% suppressWarnings()
#> Warning in geom_function(fun = function(t) {: All aesthetics have length 1, but the data has 300 rows.
#> ℹ Please consider using `annotate()` or provide this layer with data containing
#>   a single row.
#> Warning in geom_function(fun = function(t) {: All aesthetics have length 1, but the data has 300 rows.
#> ℹ Please consider using `annotate()` or provide this layer with data containing
#>   a single row.

We can fit a reduced model this time, similar to the prior example, except we can use the extra_row = TRUE option to slightly change the assumption for the fixed side to be that the component lies entire above the range of tested concentrations OR at the highest tested concentration (in the plot, this looks like adding the top “row” of the graph to the set of observations that can be at least partially weighted as part of the fixed components). Note that extra_row = TRUE works similarly when the lower component is the one assumed to be fixed, where the set of observations that can be weighted as part of the fixed component are those lower than the lowest tested concentration and those between the lowest concentration and the second lowest.

out_reduced_ex = fit_EM(
  approach = "reduced", fixed_side = "RC", extra_row = TRUE, max_degree = 4, visible_data = example_data_reduced_2, verbose = 1
)
#> CV for degrees2; attempt1
#> fold 1
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 2
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 3
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 4
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 5
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 6
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 7
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 8
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 9
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 10
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> CV for degrees3; attempt1
#> fold 1
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 2
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 3
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 4
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 5
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 6
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 7
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 8
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 9
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 10
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> CV for degrees4; attempt1
#> fold 1
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 2
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 3
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 4
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 5
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 6
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 7
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 8
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 9
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 10
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters

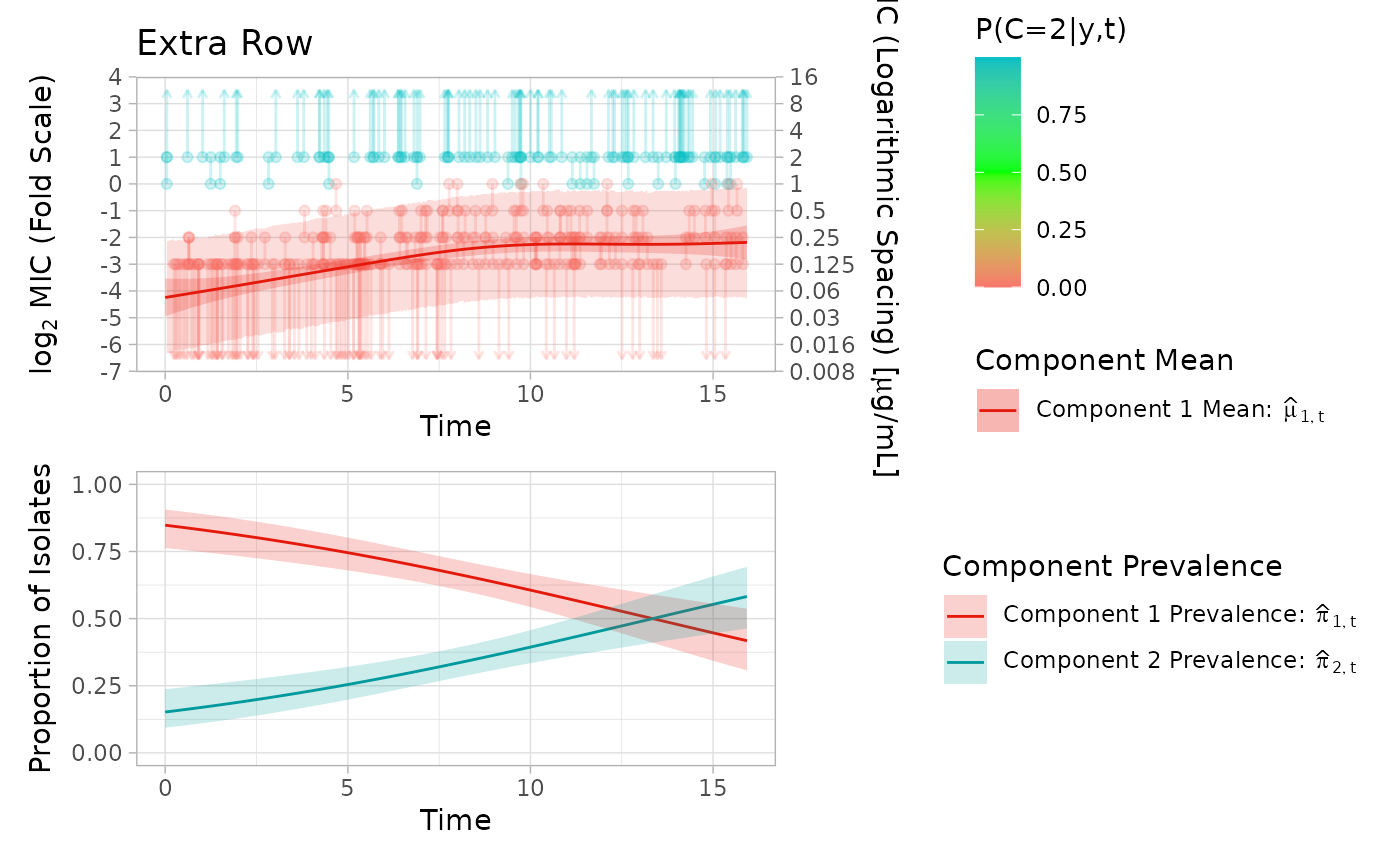

plot_fm(out_reduced_ex, title = "Extra Row")
#> Scale for y is already present.
#> Adding another scale for y, which will replace the existing scale.
#> Scale for y is already present.
#> Adding another scale for y, which will replace the existing scale.

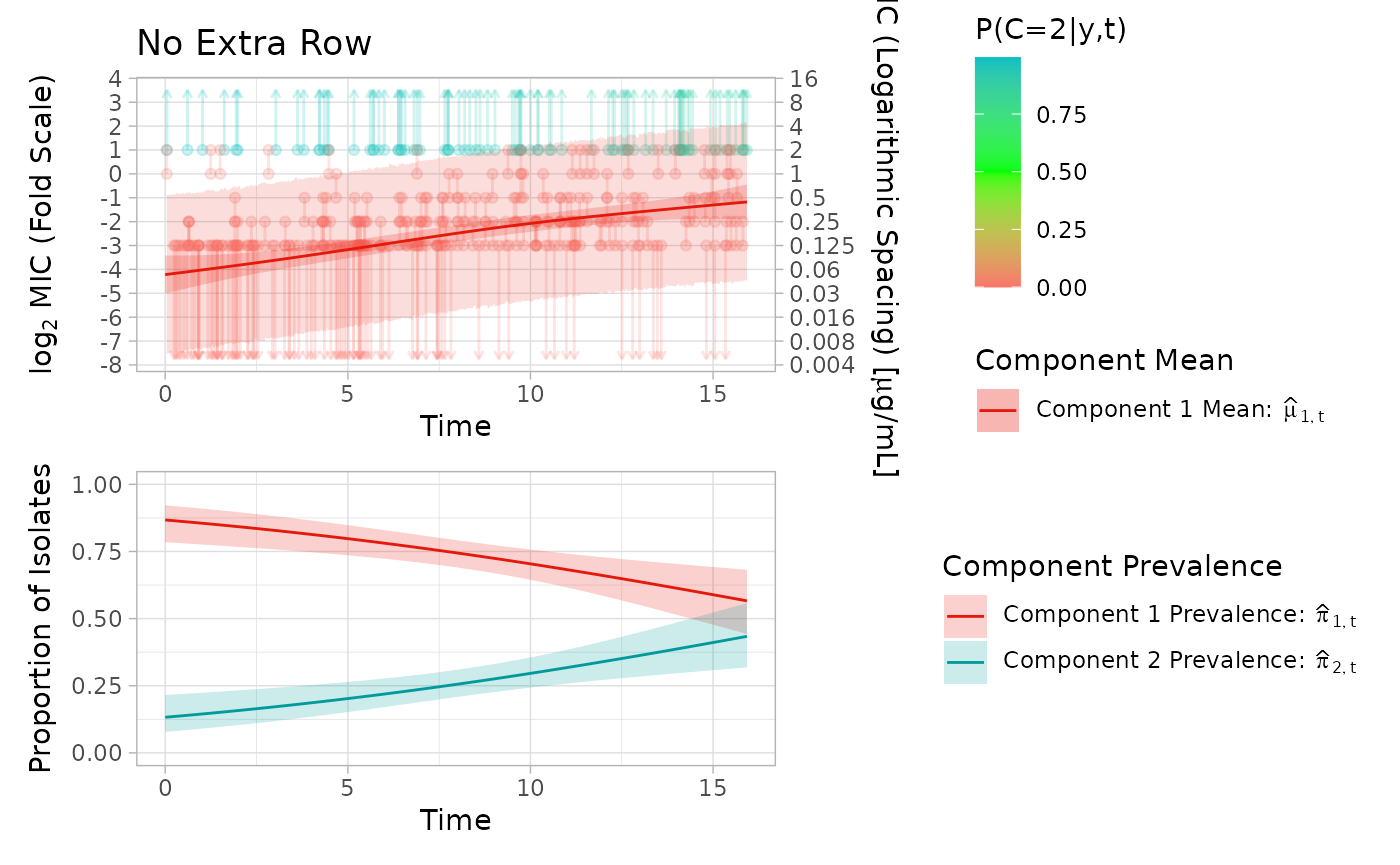

We can contrast this to the same model but fitted with extra_row = FALSE.

out_reduced_no_ex = fit_EM(
  approach = "reduced", fixed_side = "RC", extra_row = FALSE, max_degree = 4, visible_data = example_data_reduced_2, verbose = 1
)
#> CV for degrees2; attempt1
#> fold 1
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 2
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 3
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 4
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 5
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 6
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 7
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 8
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 9
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 10
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> CV for degrees3; attempt1
#> fold 1
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 2
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 3
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 4
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 5
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 6
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 7
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 8
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 9
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 10
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> CV for degrees4; attempt1
#> fold 1
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 2
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 3
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 4
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 5
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 6
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 7
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 8
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 9
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> fold 10
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
#> Stopped on combined LL and parameters
plot_fm(out_reduced_no_ex, title = "No Extra Row")
#> Scale for y is already present.
#> Adding another scale for y, which will replace the existing scale.
#> Scale for y is already present.
#> Adding another scale for y, which will replace the existing scale.
